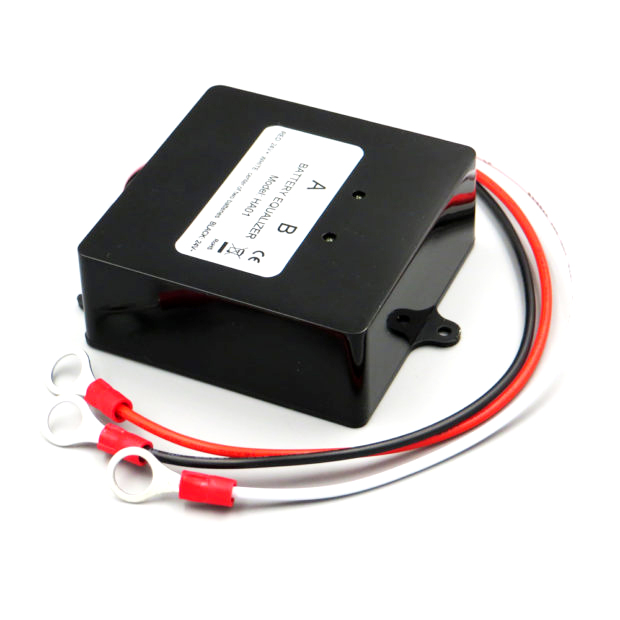

HA01 Battery Equalizer ! LED Indicator 2 x 12V 24V battery bank battery equalizer.
During the working process of a series connected battery, differences in the chemical composition and temperature of the battery cells can lead to differences in the charging and discharging of the two batteries Even when the battery is idle, due to the different degree of self-discharge, it will lead to imbalance between batteries connected in series.
ABS plasctic case
Led indicator for two battery
apply for two battery series connect
30cm with M8 ring connector
Max 5A equalizing current
Classic design accept customization
HA01 battery equalizer can compensate for the battery in both directions. When the voltage difference between series connected batteries exceeds 10 millivolts, the battery equalizer starts working, ultimately achieving battery balance It can be connected to a series connected battery for a long time, thereby automatically maintaining the balance of the battery.
HA01 battery equalizer can be used in 24V systems, as well as 36V, 48V, and other N * 12V systems. Two are required in 36V systems and three are required in 48V systems.
