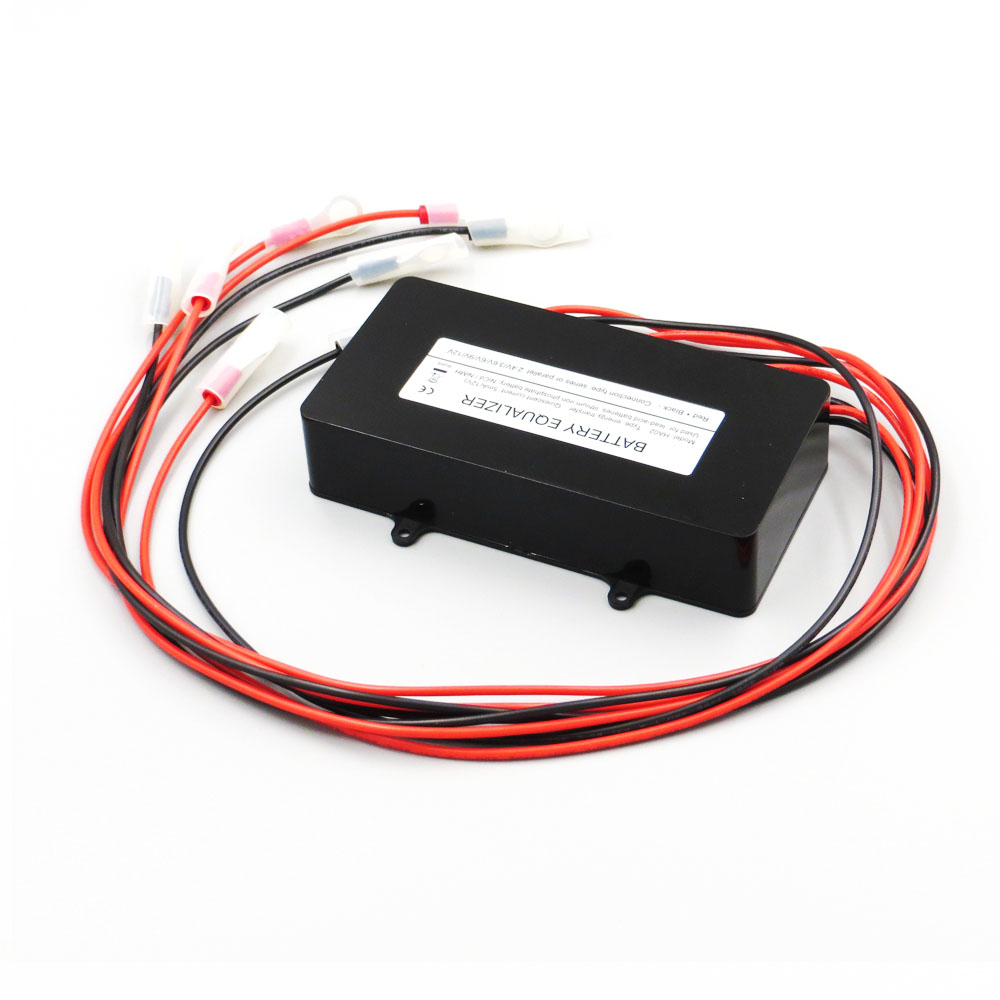

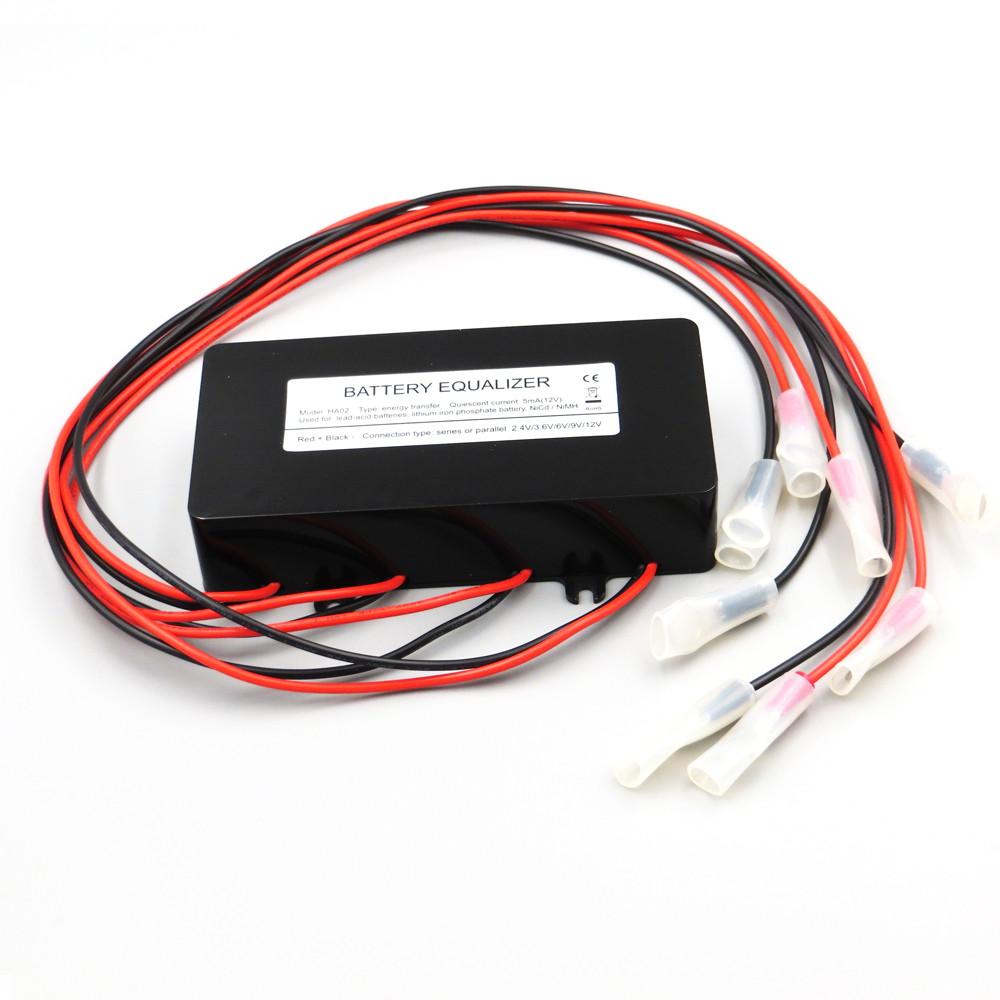

HA02 48V Battery Equalizer, Custom-made accept !
HA02 battery equalizer is an energy transfer equalizer that can compensate for batteries in both directions. When the voltage difference between series connected batteries exceeds 10 millivolts, the battery equalizer begins to operate, and current flows from the higher voltage battery to the lower voltage battery, ultimately achieving battery balance It can be connected to a series connected battery for a long time, automatically maintaining the balance of the battery without maintenance.
During the working process of a series connected battery, due to differences in the chemical composition and temperature of the battery cells, there may be differences in the charging and discharging of the two batteries. HA02 battery equalizer is used to maintain the charging and discharging balance between each battery in a series connected battery pack
The maximum equalizing current is 10A, quickly equalizing the voltage between each battery !
HA02 battery equalizer is applicable to lead-acid battery, lithium iron phosphate battery, nickel cadmium or nickel hydrogen battery. When the voltage is higher than 2.4V, it can work, which means that the battery equalizer can be used for a single battery in the range of 2.4V-12V, and can balance up to 4 batteries. If the number of batteries is less than 4, the excess connecting wires can be left empty (to avoid positive and negative pole short circuits). This does not affect the balancing effect. The connection method of the batteries is not limited. It can be used in series or parallel, and does not affect the charging and discharging work of the original equipment.
